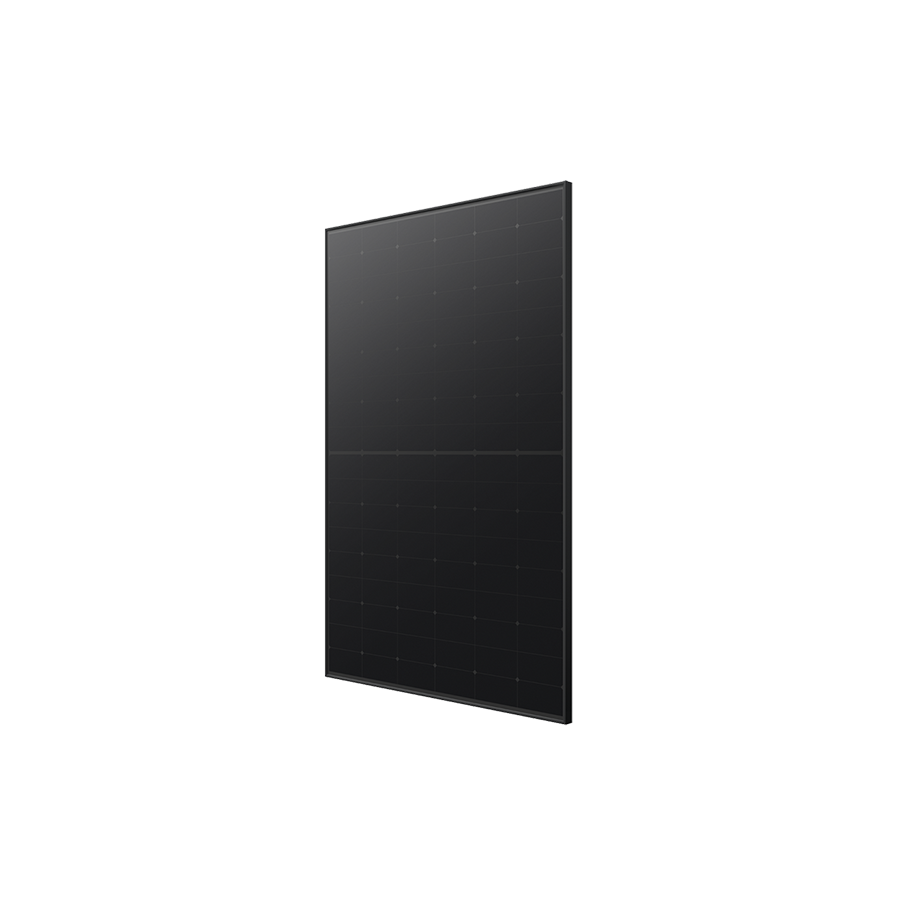

- Product info
Mechanical parameters
Battery arrangement | 144 (6X24) | 580<W> Component power | 22.50<%> Component efficiency |
Junction box | Remote junction box, IP68 | ||
Component weight | 31.8kg | ||
Component size | 2278 X1134 X 30mm | ||
Packaging Information | 36 yuan/pallet 180 yuan/20 feet flat container RMB 720/40-foot high cabinet RMB 720/13.5m flatbed truck RMB 900/17.5m flatbed truck | 15<year> Product Warranty | 25<year> Power warranty |
Electrical performance parameters(STC test)
Component model | LR5-54HTB-420M | LR5-54HTB-425M | LR5-54HTB-430M | LR5-54HTB-435M |
Maximum power (Pmax /W) | 420 | 425 | 430 | 435 |
Open circuit voltage (Voc/V) | 39.03 | 39.23 | 39.43 | 39.63 |
Short circuit current (Isc /A) | 13.85 | 13.93 | 14.00 | 14.08 |
Peak power voltage (Vmp/V) | 32.76 | 32.96 | 33.16 | 33.36 |
Peak power current (Imp /A) | 12.83 | 12.90 | 12.97 | 13.05 |
Electrical performance parameters(NOCT test)
Component model | LR5-54HTB-420M | LR5-54HTB-425M | LR5-54HTB-430M | LR5-54HTB-435M |
Maximum power (Pmax /W) | 314 | 314 | 321 | 325 |
Open circuit voltage (Voc/V) | 36.65 | 36.83 | 37.02 | 37.21 |
Short circuit current (Isc /A) | 11.19 | 11.25 | 11.31 | 11.37 |
Peak power voltage (Vmp/V) | 29.89 | 30.08 | 30.26 | 30.44 |
Peak power current (Imp /A) | 10.50 | 10.56 | 10.62 | 10.68 |
load capacity | Temperature coefficient(STC test) | ||
Maximum static load on the front (e.g. snow, wind) | 5400Pa | Short circuit current (Isc) temperature coefficient | +0.050%/℃ |
Maximum static load on back (e.g. wind) | 2400Pa | Open circuit voltage (Voc) temperature coefficient | -0.230%/°C |
Passes hail test | The diameter is 25mm, and the impact speed is 23m/s | Peak power (Pmax) temperature coefficient | -0.290%/°C |
